TurboPrint & PrintFab

Thanks for the response.

For some reason I thought the preview showed the halftones before printing. I will test to make sure it works as I need.

I have updated to V 1.23b.

I created a test file of 6 squares of a spot color. Each is a different percentage of opacity from 0% to 100%. Test printing there is still no change in achieving halftone.

Also this is the first time I have printed films since I upgraded to Win 11 and is version 1.21.

I have an Illustrator file that has color gradients, from color to transparent. The color in the gradient is a spot color, with opacity from 100% to 0%. When I go to print, and in the Illustrator print dialog box, selecting the Output section shows the spot color and process colors selected to print...

I used the Canon iX6820 and ran into similar issues. I don't know if the IP8720 has a similar cartridge and print head set up. I ran into problems where I was not printing films regularly and the ink would clog the print head and not print well. I would replace the print head and cartridges and it w...

Thanks again for your response. I think I have it all figured out and it is something to consider for any quality printing. I contact the ink supplier and explained what was happening. He stated that it was the quality of the refillable ink cartridge. The inexpensive ones, like I had purchased, have...

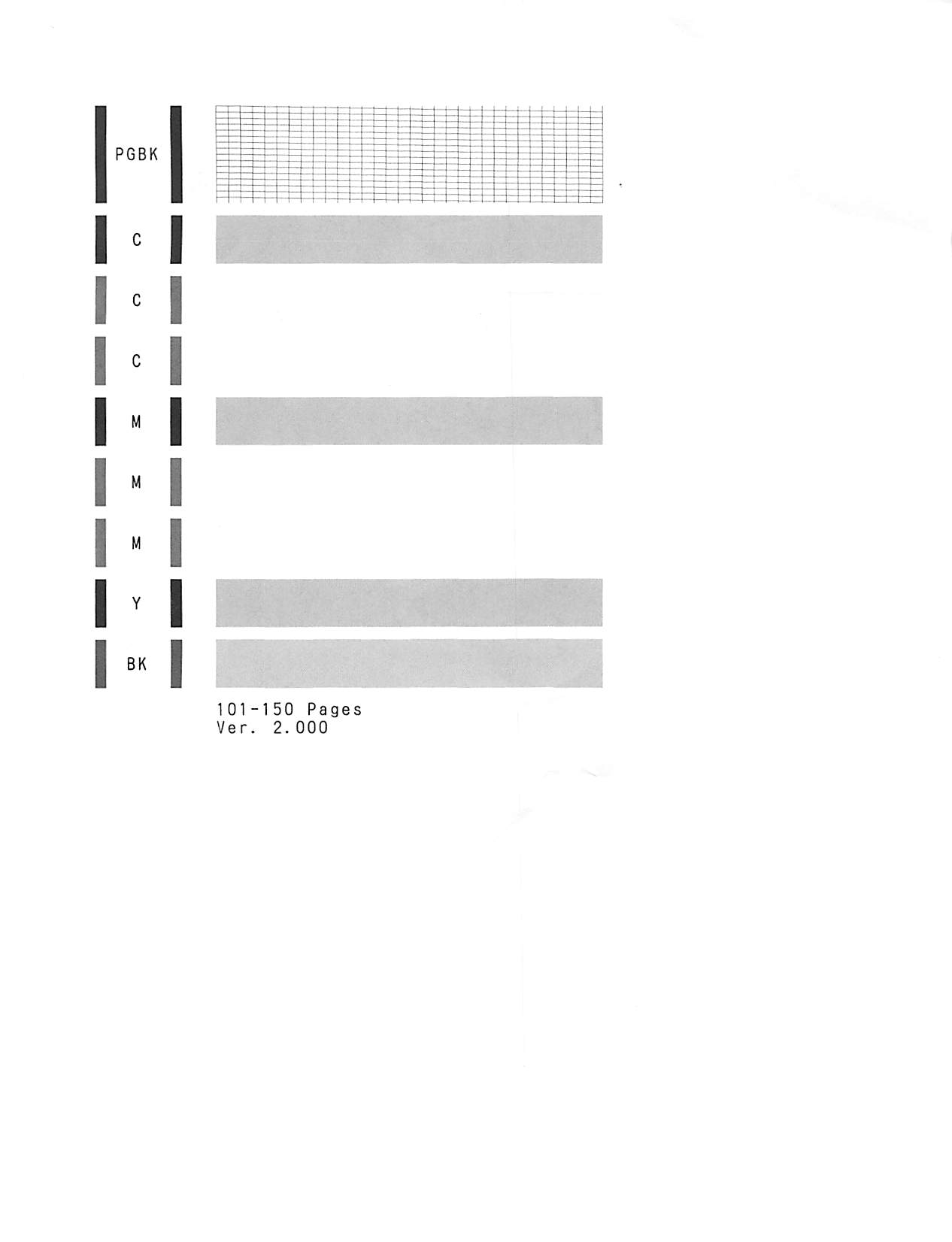

Unfortunately I am still having issues printing solid black images for screen printing transparencies. I have re-read your earlier posts and have done some testing. I have also replaced the print head and ink cartridges with appropriate Canon compatible ink. I am attaching scans of the test pages I ...

One last note for anyone that reads this.

I did get the appropriate ink for my printer, installed new cartridges and filled with ink. Now all is printing correctly.
NOTE: get the correct ink for your printer brand.

So a final bit on this... I removed the print head and cleaned it out thoroughly. I printed a test page and it printed well, then additional tests did not print well. With your comment of print nozzles being clogged I decided to call the ink manufacturer and learned the ink I have been using is for ...

I have a question about your comments of the fine Cyan and Magenta nozzles. The iX6820 only has 5 ink cartridges, C, M, Y, and 2K. Are the fine nozzles a mechanical solution for lighter applications of these two colors? If printing a transparency, would these still be used and why, if clogged, would...

Tested with Cyan and Magenta disabled. When I print with Media Type as plain paper it will print. When I change to Transparent CF102 it does not print at all. It runs the paper though the printer and the print heads are going through the action of printing, not leaving any ink on the paper.

Thanks, I will try that. I have also reinstalled the driver but have not tested it yet.

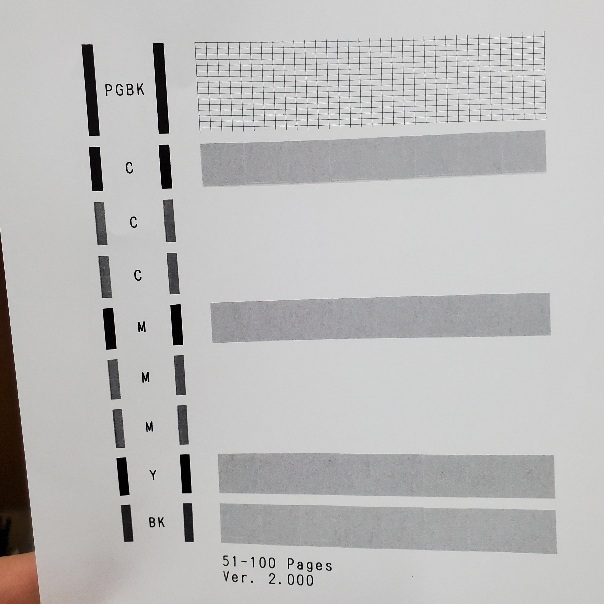

Here is an image of the last test pint I did just after a Deep Cleaning through the printer driver maintenance (not using the PrintFab driver).
The grid did print correctly, it may not appear so in the image.

Media type details of Transparent CF102
